Our Gabion box Test by SGS Before Shipment

our customer arranged the SGS test person come test the Gabion box befor every shipment

micrometer test the Wire diameter:2.7mm±0.05mm

use the ruler test the hole size:80×100mm is 83×105mm

the width:1000mm is 1010mm

the length:2000mm

the heght:1000mm is 1005mm

test our zinc coated:more than 275g/m2

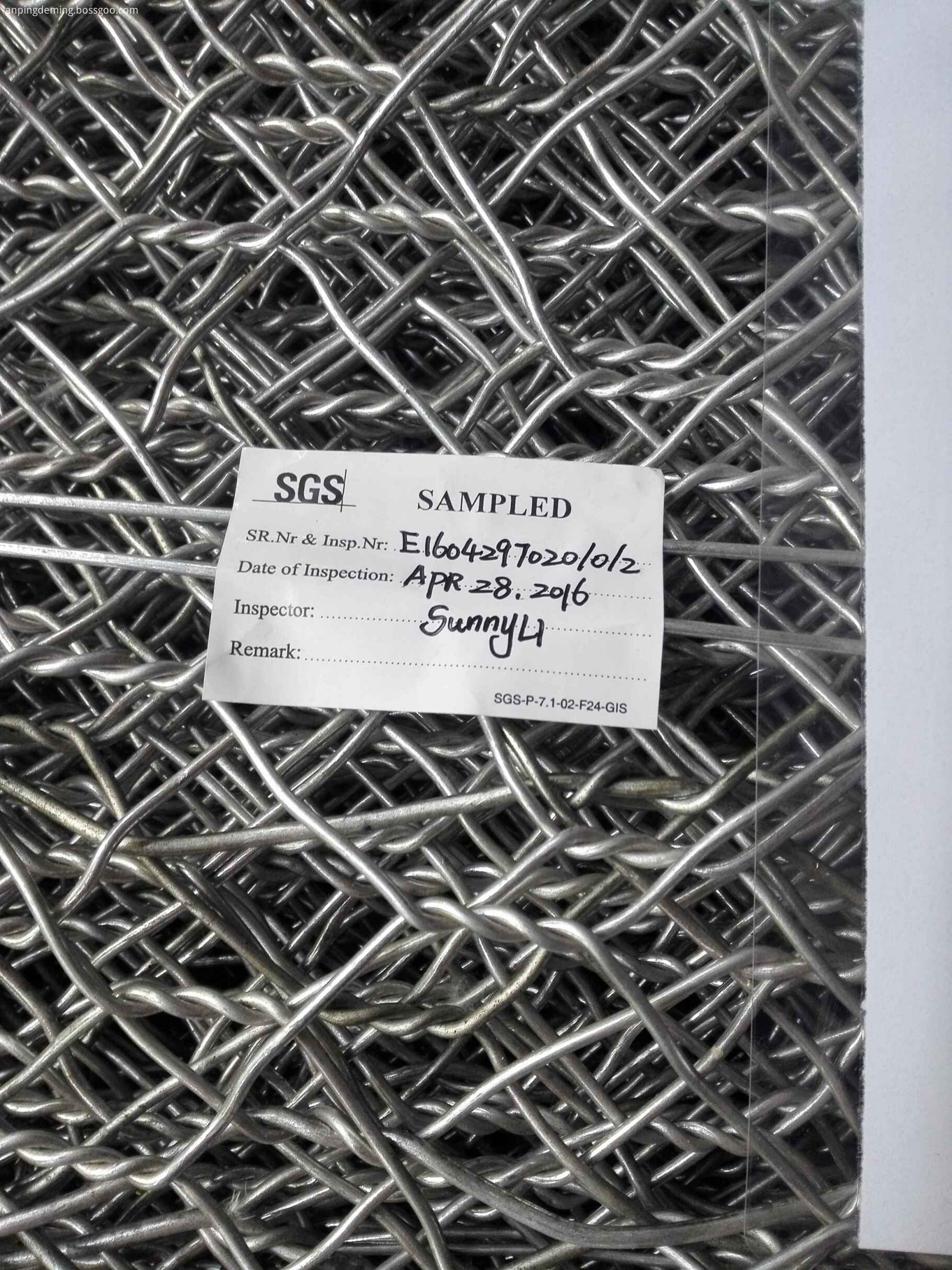

look our gabion box which had accepted by SGS

gabion box sgs

Gabion box(Basket) are made of hexagonal Galvanized /PVC/Zinc-Al double twised steel wire mesh. Double Twisted Hexagonal Mesh Gabions&Reno Mattresses are commonly used for channel linings, river training, soil retention, slope stabilization, and other applications successfuly throughout the world for over 20 yeras.

*Related Products:Gabion Basket,Welded Gabion.

Some of the advantages offered by double twisted mesh gabions&reno mattresses are flexibility, durability, strength, permeability, ecology, reliability, longevity, low cost, and an aesthetic.

Gabion box specification:

mesh size: 6*8cm, 8*10cm, 10*12cm

mesh wire: 2.0mm, 2.2mm, 2.4mm, 2.7mm, 3.0mm

selvage wire: 2.4mm, 2.7mm, 3.0mm, 3.4mm, 3.9mm

Tie wire: 2.0mm, 2.0mm, 2.0mm, 2.2mm, 2.4mm

Size: 2.0*1.0*0.15/0.3m, 3.0*1.0*0.15/0.3m, 4.0*1.0*0.15/0.3m, 3.0*1.0*0.5m, 2.0*1.0*1.0m, 3.0*1.0*1.0m, 4.0*1.0*1.0m

every 1 meter with one diaphram.

Welded gabion mainly used for Hesco Barrier which is made of welded mesh panels and connected with spring wire.

Material:  low carbon steel wire, stainless steel wire

Surface treatment: Electric galvanized, Hot dip galvanized, Alu-zinc coated after welded, etc

Wire thickness: 3mm, 4mm, 5mm, 6mm, etc.

Spring wire: 3mm, 4mm, 5mm, 6mm, etc.

Mesh size: 50*50mm, 75*75mm, 76.2*76.2mm, 100*100mm, etc

Geotextile: 20g, 250g, 300g/mm2
